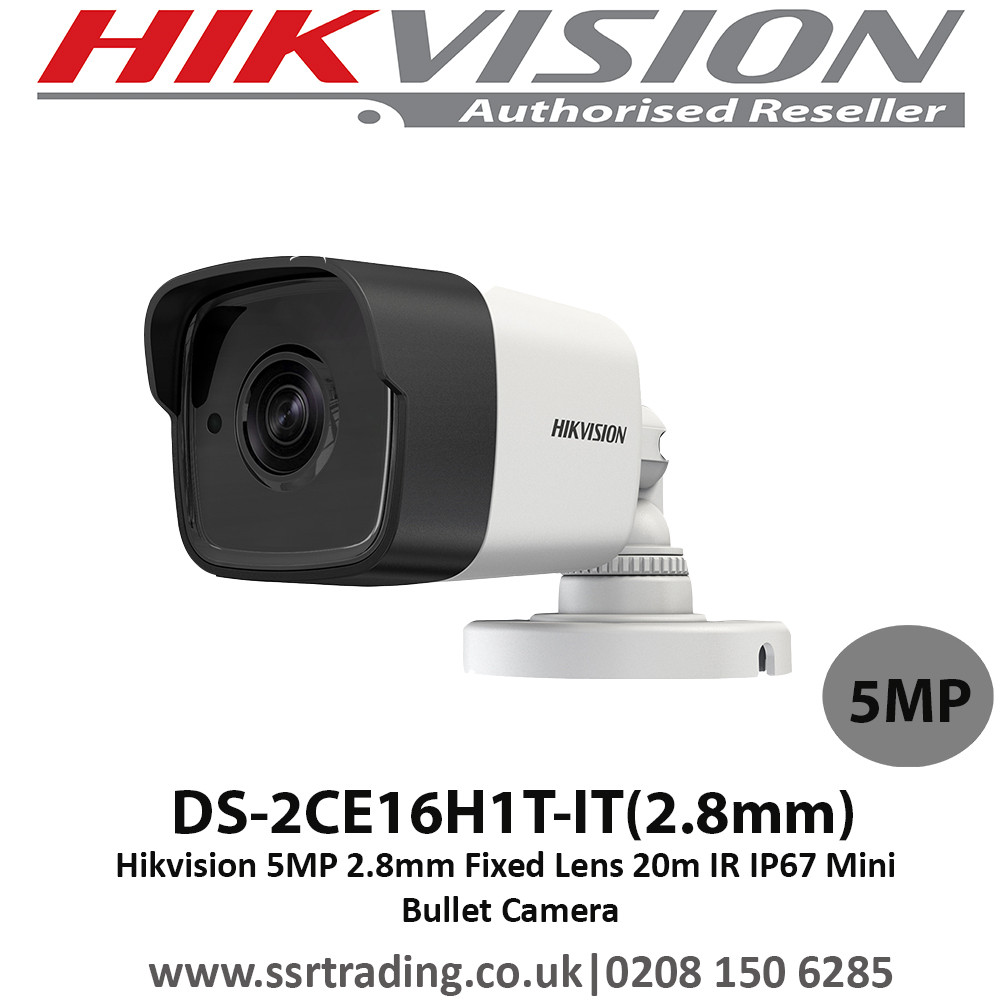

Hikvision DS-2CE16H1T-IT 5MP 2.8mm Fixed Lens 20m IR IP67 Mini Bullet Camera

Call for pricing

Choose Your Options

SKU:
HIKTVI5409'
Quantity:

Product Description

Hikvision 5MP 2.8mm Fixed Lens 20m IR IP67 Mini Bullet Camera- DS-2CE16H1T-IT

Hikvision’s DS-2CE16H1T-IT 5 Megapixel EXIR Bullet with extended IR performance and IP67 protection perfectly suits outdoor security applications. With up to 20m IR distance, users receive a live view at HD resolutions and can record 5 Megapixel footage at same time.

Key features:

  • 5 Megapixel High performance CMOS
  • Lens options: 2.8mm, 3.6mm, 6mm
  • HD Analogue output
  • Up to 5 Megapixel resolution
  • True Day/Night
  • IP67

Hikvision Material Code: 300508336

EAN Number: 6954273650797

Camera specification:

Camera


Image Sensor 5 MP CMOS image sensor
Resolution 2592 (H) × 1944 (V)
Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens
Horizontal Field of View 86.5° (2.8 mm), 70.1° (3.6 mm), 46° (6 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°; Tilt:0° to 90°; Rotate: 0° to 360°
Synchronization Internal synchronization
Frame Rate 2592 × 1944 @ 20fps
HD Video Output 1 HD analog output

Menu


AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
Language English, Chinese
Functions Brightness, Sharpness, Digital noise reduction, Mirror, Bad pixel correction, Smart IR

General


Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 V DC ±30%
Power Consumption Max. 5 W
Protection Level IP67
IR Range Up to 20 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 58 mm × 61 mm × 163 mm (2.28" × 2.40" × 6.42")
Weight Approx. 350 g (0.77 lb.)

Warranty Information

2 years
