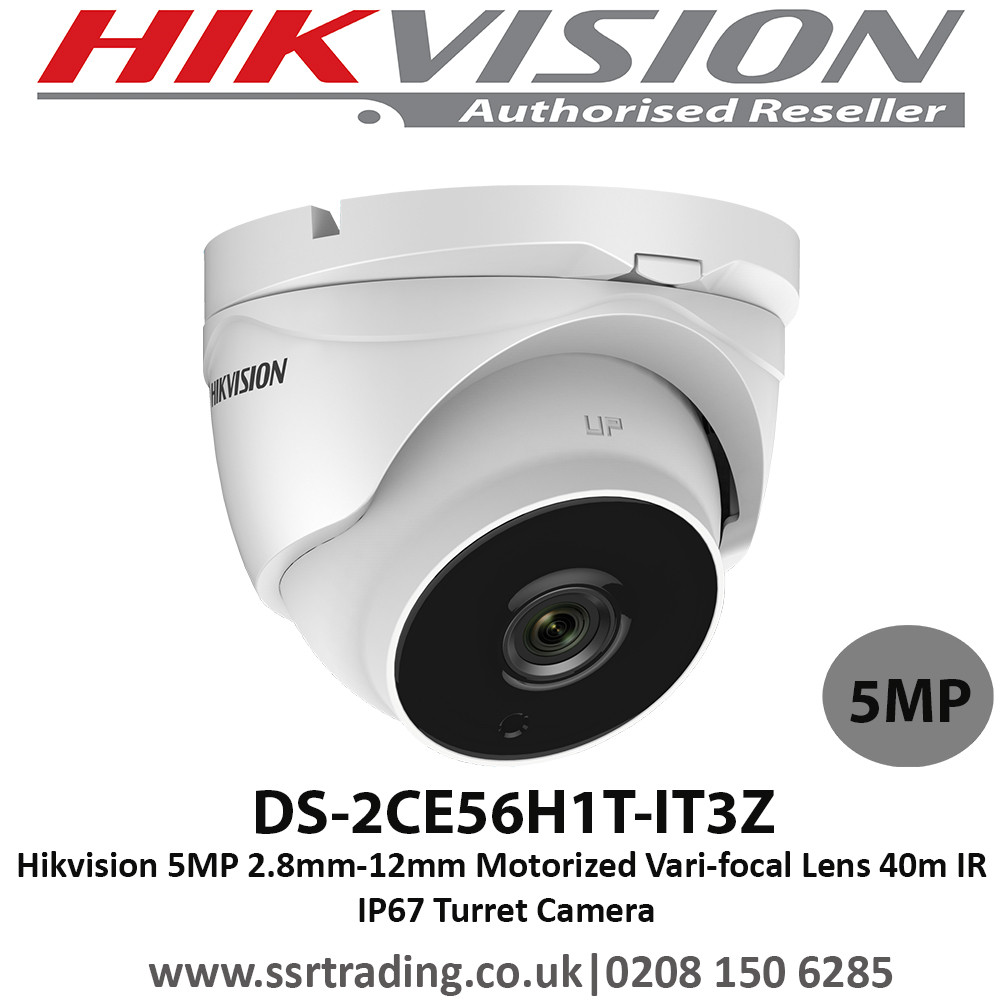

Hikvision 5MP 2.8mm-12mm Motorized Vari-focal Lens 40m IR IP67 Turret Camera - DS-2CE56H1T-IT3Z

Call for pricing

Choose Your Options

SKU:
HIKTVI5107 (2.8-12mm)
Quantity:

Product Description

Hikvision 5MP 2.8mm-12mm Motorized Vari-focal Lens 40m IR IP67 Turret Camera - DS-2CE56H1T-IT3Z

Key features:

  • 5 Megapixel High performance CMOS
  • Analogue HDTVI output
  • Up to 5 Megapixel resolution
  • Motorised Varifocal Lens 2.8-12mm
  • True Day/Night
  • OSD menu
  • Hikvision Material Code: 300609656

Camera Specification:

Camera


Image Sensor 5 MP CMOS image sensor
Effective Pixels 2592 (H) × 1944 (V)
Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 to 12 mm motorized vari-focal lens
Horizontal Field of View 86.8° to 27.7° (2.8 to 12 mm)
Lens Mount Φ14
Day & Night ICR
Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 2592 × 1944 @ 20fps
HD Video Output 1 HD analog output

Menu


AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
Language English, Chinese
Functions Brightness, Sharpness, Digital noise reduction, Mirror, Bad pixel correction, Smart IR

General


Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 V DC ±30%
Power Consumption Max. 6 W
Protection Level IP67
IR Range Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 134.3 mm × 123.9 mm × 111.4 mm (5.29" × 4.88" × 4.39")
Weight Approx. 750 g (1.57 lb.)

Warranty Information

2 years
