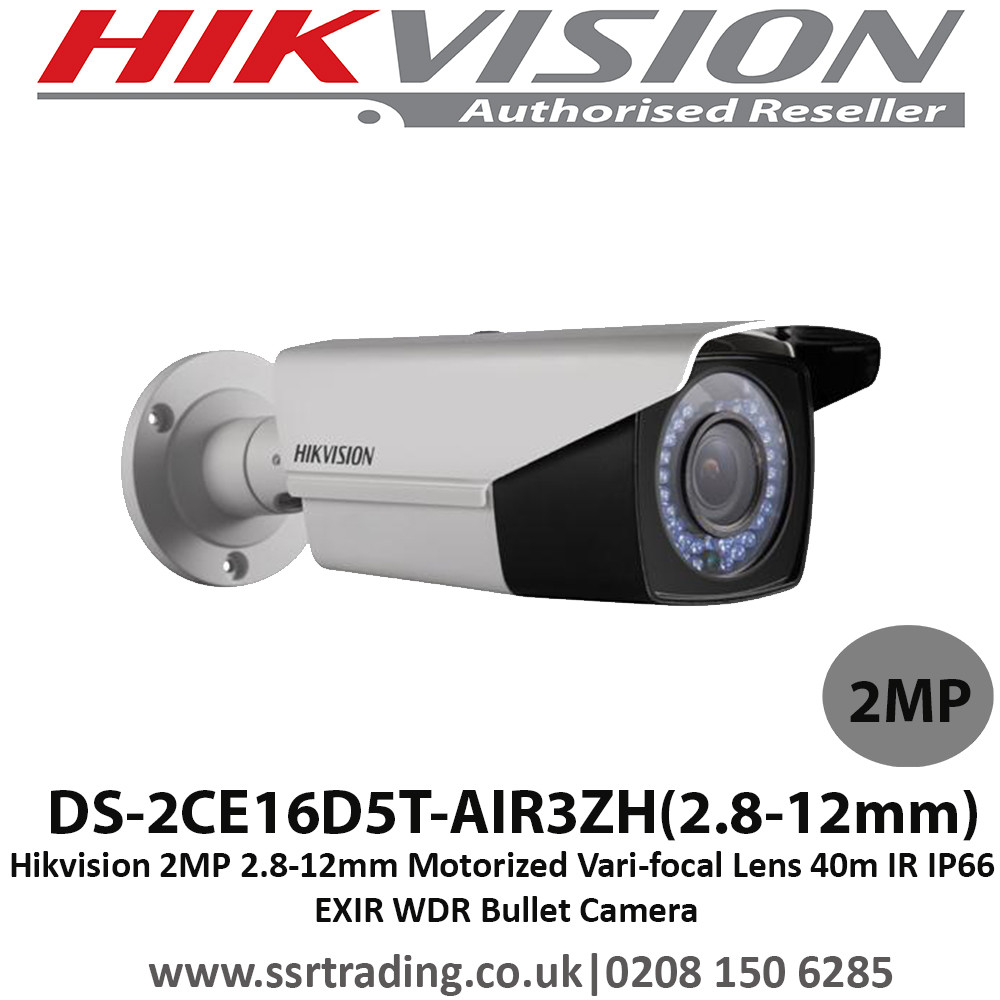

Hikvision 2MP 2.8-12mm Motorized Vari-focal Lens 40m IR IP66 EXIR WDR Bullet Camera - DS-2CE16D5T-AIR3ZH

Call for pricing

Choose Your Options

SKU:
HIKTVI2402 (2.8-12mm)
Quantity:

Product Description

Hikvision 2MP 2.8-12mm Motorized Vari-focal Lens 40m IR IP66 EXIR WDR Bullet Camera - DS-2CE16D5T-AIR3ZH



• 2 Megapixel High-Performance CMOS
• TurboHD Output, up to 1080p Resolution
• 2.8 mm to 12 mm Motorized Varifocal Lens
• True Day/Night
• OSD Menu, 3D DNR, Smart IR
• True WDR, up to 120 dB
• IR Range 40 Meters (~130 Feet)
• Built-In Heater
• IP66 Weatherproof
• UTC Function

Camera
Image Sensor: | 2 MP CMOS image sensor
Signal System: | NTSC
Effective Pixels: | 1920 x 1080
Min. Illumination: | 0.014 lux @ (ƒ/1.4, AGC on), 0 lux with IR
Shutter Time: | 1/30 s to 1/50,000 s
Lens: | Motorized VF lens; 2.8 mm to 12 mm @ ƒ/1.4
Angle of view: 103° to 32.1°
Lens Mount: | Φ14
Day & Night: | True, IR cut filter
Synchronization: | Internal synchronization
Video Frame Rate: | 1080p @ 30 fps
HD Video Output: | 1 TurboHD output
CVBS Output: | 1 Vp-p composite output (75 Ω/BNC)
S/N Ratio: | More than 52 dB
WDR: | 120 dB
Menu
Scene: | Indoor, outdoor, indoor1, LOW-LIGHT
Camera ID: | On/off (15 characters, position programmable)
AGC: | Yes
D/N Mode: | Color/BW/EXT
White Balance: | ATW, AWC-SET, indoor, outdoor, manual
Privacy Mask: | On/off, maximum 8 zones
Motion Detection: | On/off, maximum 4 zones
BLC: | Yes
Anti-flicker: | On/off
Functions: | HSBLC (Eclipse), digital noise reduction, digital zoom (62x), slow shutter, mirror, defog, defect pixel correction, SMART D-ZOOM
General
Working Temperature/Humidity: | 40° C to 60° C (-40° F to 140° F), humidity 90% or less (non-condensing)
Power Supply: | 12 VDC, 24 VAC
Power Consumption: | Maximum 12 W
Weather Proof Ratings: | IP66
IR Range: | 40 meters (~130 feet)
Communication: | Up-the-Coax
Protocol: HIKVISION-C
Dimensions: | 92 mm × 84.8 mm × 269.6 mm (3.62" × 3.34" × 10.6")
Weight: | 690 g (1.52 lbs)

Warranty Information

2 years
