Hikvision Video Intercom System Kit for 4x Resident

What's Included

• 4x Video Screen - DS-KH6320-WTE1

• 1x Door Station - DS-KD8003-IME1/S

• 1x 2 Way Door Station Bracket - DS-KD-ACW2

• 1x Nametag Modular - DS-KD-KK

• 1x 8 Port Switch - DS-3E0310HP-E

KH6 Series IP-Based Indoor Station

• 7-inch colorful touch screen with resolution 1024 × 600

• Standard PoE

• Stores messages and capture pictures in the TF card

• Remote unlocking via the client software or the mobile client

• Views live videos of door stations and linked cameras

• Supports wireless network

Stainless Steel Gen 2 Video Intercom Door Station Module

• 2 MP HD video intercom function

• Access control function

• Noise suppression and echo cancellation

• Low illumination

• Tampering alarm supported

• Fisheye camera with IR supplement light

• Supports sub-modules’ access (max. 7)

• Nametag customization

2nd Video Intercom Brackets

• 2 module accessories , used for Surface mounting

• Includes 2 module frame , 2 module front panel and some other necessary accessories

Hikvision Video Intercom Nametag Modular - DS-KD-KK

• Dial the resident at one-touch

• Backlight compensation

• Easy and extend

• Powered by DS-KD8003-IME1

8 Port Fast Ethernet Unmanaged POE Switch

• Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.

• Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.

• 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.

• 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.

• Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

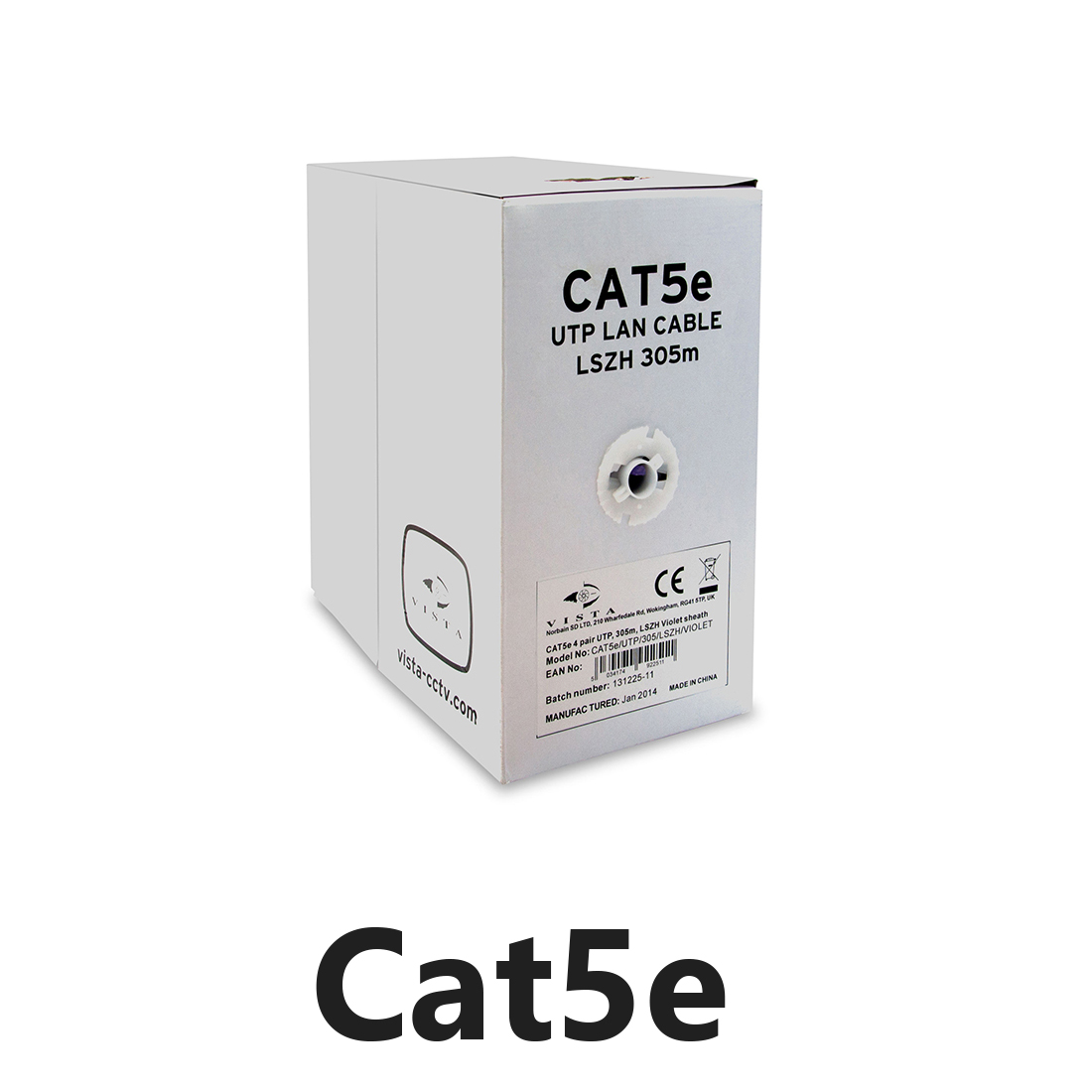

PLEASE NOTE THIS KIT DOES NOT INCLUDE CABLE - IF YOU NEED CAT5 CABLE CLICK THE LINK BELOW:
