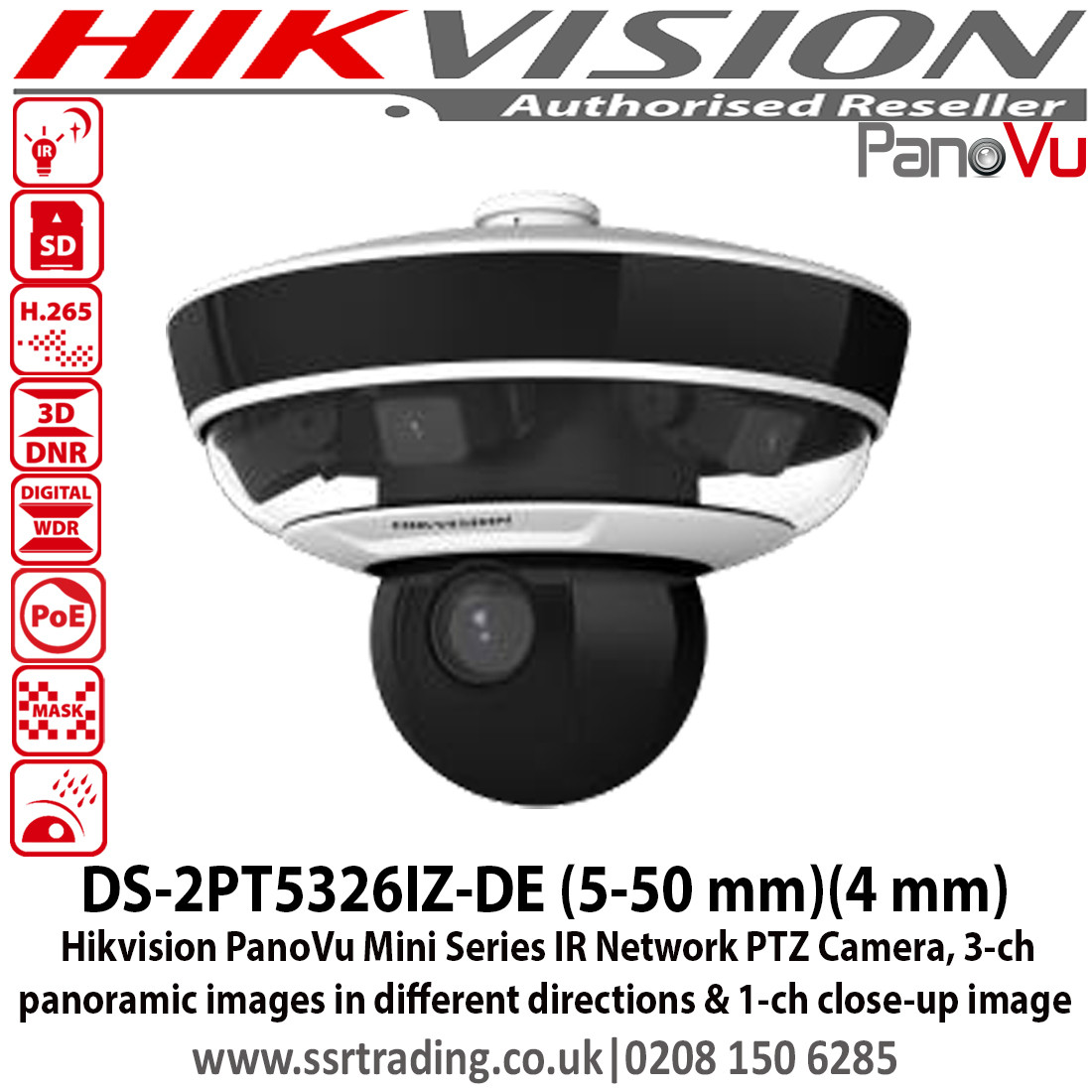

Hikvision PanoVu Mini Series IR Network PTZ Camera with IP66, 3-ch panoramic images in different directions and 1-ch close-up image, Built-in memory card slot, Support H.265 video compression - DS-2PT5326IZ-DE (5-50 mm)(4 mm)

Overview

Hikvision DS-2PT5326IZ-DE (5-50 mm) (4 mm) PanoVu Mini Series IR Network Outdoor PTZ Camera, is able to capture 240°images with the panoramic cameras, as well as close-up images with the PTZ camera.

System Functions

•  3-ch panoramic images in different directions and 1-ch close-up image
•  Three flexible cameras are adjustable along a circular track, slide range: 0°to 270°
•  Three flexible cameras can tilt rotate from 15°to 55°independently
•  1-ch audio input and 1-ch audio output
•  1-ch alarm input and 1-ch alarm output, support alarm linkage
•  PTZ linkage
•  Built-in memory card slot, support microSD/SDHC/SDXC, up to 256 GB
•  Open-ended API, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
•  Support H.265 video compression
•  IP6

Panoramic Camera

•  Three 1/2.8" progressive scan CMOS
•  UP to 3-ch 1920 × 1080@30fps resolution
•  Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
•  Horizontal FOV: 80.7°× 3 Vertical FOV: 43.5°
•  Three flexible cameras are adjustable along a circular track, slide range: 0°to 270°
•  Up to 30 m IR radius
•  IP66

PTZ Camera

•  1/2.8" progressive scan CMOS
•  Up to 1920 × 1080@30fps resolution
•  Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
•  10× optical zoom, 8× digital zoom
•  Up to 50 m IR distance

Bracket Options

• DS-1602ZJ Wall Mounting Bracket
• DS-1602ZJ-Pole Vertical Pole Mounting Bracket
• DS-1602ZJ-Corner Corner Mounting Bracket
• DS-1661ZJ Pendant Mounting Bracket
