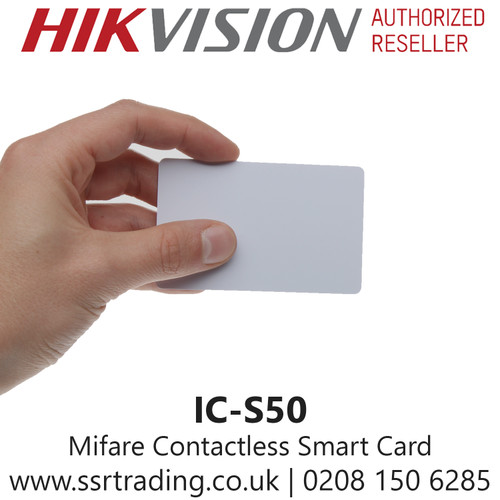

Hikvision Mifare Contactless Smart Card for use with Hikvision Intercom - IC-S50

MIFARE RF Interface (ISO/IEC 14443 A)

• Non-Contacting data transmission and supplied power(no battery needed)

• Working distance: no more than 100mm (depends on the antenna dimension)

• Working frequency: 13.56 MHz

• High data transmission speed: 106 k bit/s

• Data integrity protection: 16 bit CRC, odd-even check, encoding and counting by bit.

• Anti-conflict

• Data transmission and processing time: < 100 ms (including backup and management time)

EEPROM

• 1 k byte (16 zones, 4 sections per zone, 16 bytes per section)

• User definable reading/writing condition for memory block

• Long time data storage: 10 years

• 100,000 writing times

Security

• Triple accreditation(ISO/IEC DIS9798-2)

• Attack protective radio-frequency channel data encryption

• Two security keys (support multiple security levels) for each section

• Only one serial No. for one card

• Transmission security key to protect the access right of EEPROM during the transmission

Hikvision Data Sheet: IC-S50
