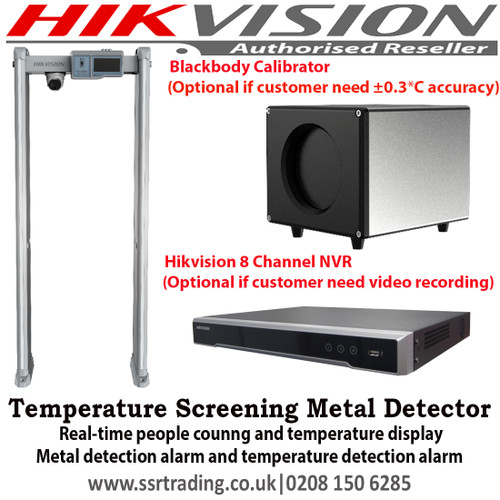

Hikvision ISD-SMG318LT-F Temperature Screening Metal Detector with 3.1mm lens thermographic turret body temperature measurement camera, Real-time people counng and temperature display Metal detection alarm and temperature detection alarm

ISD-SMG318LT-F walk-through metal detector, adopting the thermal imagery technology, realizes non- contact temperature measurement. Face detection function of the camera makes an accurate positioning of the measurement. The detector also supports metal detection.

It is suitable for safety inspection of dangerous goods and is widely used in public occasions and important places, etc. It is recommended to be used indoor with a windless environment.

Functions

• Non-contact temperature measurement: face temperature measurement with accurately personnel matching. Temperature accuracy:±0.5 ℃ , detection distance: 0.5 to 1.5 m, target height: 1.45 m to 1.85 m
• Temperature filtering: adjustable temperature threshold. An over-threshold temperature will trigger the audible strobe light
• Counting display: displays the walk-through people number, metal alarm times, real time temperature, number of people in abnormal temperature
• Metal detection: metal likes a clip
• Multi-Area alarm: Indicates the metal position on the body. Max. 18 areas
• Modularized component: easy transmission and installation

Thermal Imaging Features

Smart Functions:

• Temperature exception detection
• Linkage for audible alarm
• Linkage of white strobe light alarm Thermal Imaging Functions:
• Uncooled sensor, resolution: 160 x 120
• Supports AGC4.0, DDE, and 3DNR
• Supports dual-light fusion image
• Supports visible light and thermal imaging frame over lay

System Functions:

• Dual-channel, single IP
• Dual-streaming
• PoE power supply
• IP66 protective level
• Operation temperature: 5℃ to 40℃, ＜95% RH Interfaces:
• 10M/100M self-adapting network interface
• Micro SD/Micro SDHC/Micro SDXC card (128G/256G) slot
• 1-ch alarm input/output

Hikvision DS-2TD1217B Thermographic Turret Body Temperature Measurement Camera is able to measure an object's temperature at a high accuracy in real time. It is capable of discovering and tracking people with a higher body temperature in a crowded public area. It can be widely used in places such as customs, airports, schools and hospitals for inspection and quarantine purposes.

• 160 × 120 resolution in thermal channel, high sensitivity sensor.
• Temperature range: 30°C to 45°C; temperature accuracy: ±0.5 °C
• Reliable temperature exception alarm function
• 3D DNR, image detail enhancement
• Audio alarm
