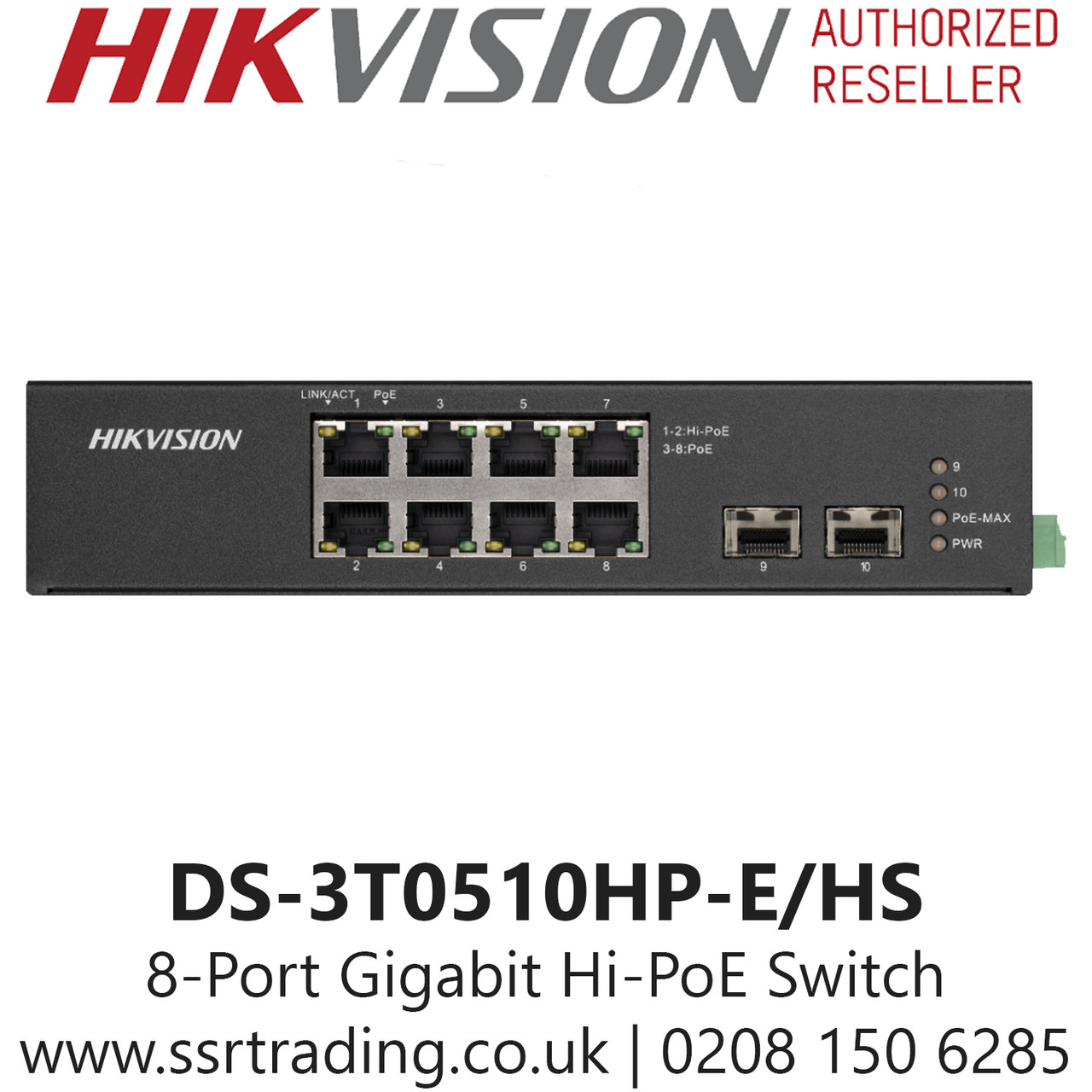

Hikvision DS-3T0510HP-E/HS 8-Port Gigabit Unmanaged Hi-PoE Switch, 6 KV surge protection for PoE ports. PoE output power management, Up to 300 m long-range transmission

DS-3T0510HP-E/HS switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and wider temperature (-30 to 65 °C) design on the basis of high-performance access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.

• 6 × gigabit PoE RJ45 ports, 2 × gigabit Hi-PoE RJ45 ports and 2 × gigabit SFP fiber optical ports.
• IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 90 W PoE output).
• IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
• 6 KV surge protection for PoE ports.
• PoE output power management.
• Up to 300 m long-range transmission.
• PoE watchdog to auto detect and restart the cameras that do not respond.
• Port isolation to improve network security.
• Wider temperature (-30 to 65 °C) design.
• Wire-speed forwarding.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Reliable fan-free design.

Hikvision Data Sheet:

Please click the link below for full specification

DS-3T0510HP-E/HS
