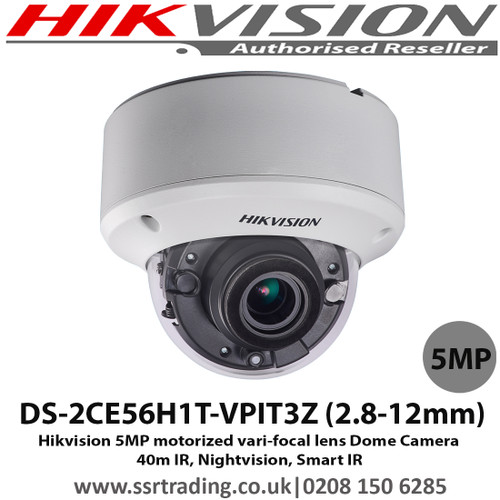

Hikvision 5MP 2.8-12mm Varifocal 40m IR IP67 EXIR HD-TVI Dome Camera - DS-2CE56H1T-VPIT3Z

Call for pricing

Product Description

Camera
Image Sensor:	\|	5MP CMOS Image Sensor
Effective Pixels:	\|	2592(H)*1944(V)
Min. Illumination:	\|	Color: 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR
Shutter Time:	\|	1/25(1/30) s to 1/50,000 s
Lens:	\|	Motorized VF lens; 2.8 to 12 mm
Lens Mount:	\|	φ14
Adjustment Range:	\|	Pan: 0° to 340°; Tilt: 0° to 75°; Rotate: 0° to 355°
Day& Night:	\|	IR cut filter with auto switch
Video Frame Rate:	\|	2592×1944@20fps
HD Video Output:	\|	1 Analog HD output
Synchronization:	\|	Internal Synchronization
Menu
D/N Mode:	\|	Auto / Color / B/W
Auto White Balance:	\|	Auto/MWB
BLC:	\|	Support
AGC:	\|	Support
Language:	\|	English/Chinese
Function:	\|	Brightness, Sharpness, Digital noise reduction, Mirror, Bad pixel correction, Smart IR
General
Operating Conditions:	\|	-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:	\|	12 VDC±20% -A: 12 VDC±20% 24 VAC±20%
Power Consumption:	\|	Max. 4.5 W -A: Max. 6.5 W
Impact Protection:	\|	IK10.
Weather Proof:	\|	IP67
IR Range:	\|	Up to 40m
Communication :	\|	Up the coax Protocol: HIKVISION-C(Coaxitron)
Dimension:	\|	Φ 145.2 mm × 124.1 mm (Φ 5.72" × 4.89" )
Weight:	\|	Approx. 1600 g (3.53 lb.)
