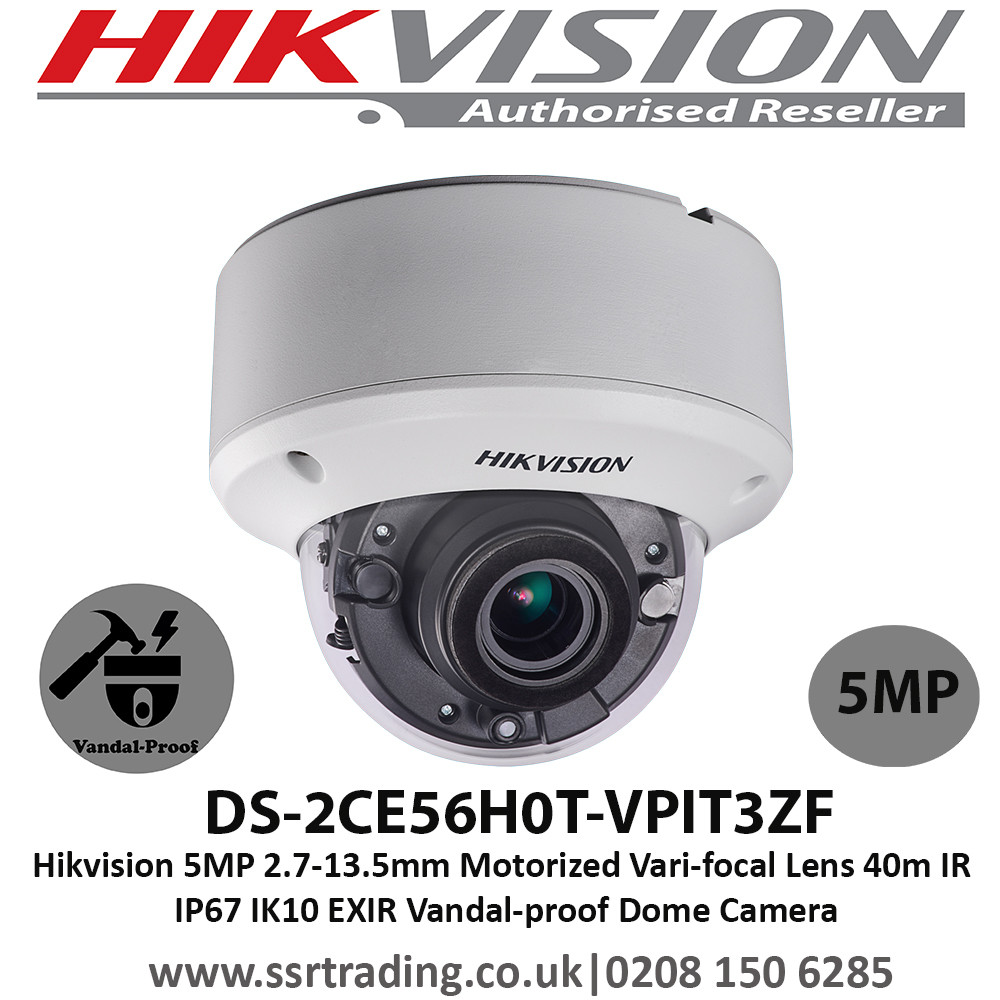

Hikvision 5MP 2.7-13.5mm Motorized Vari-focal Lens 40m IR IP67 IK10 EXIR Vandal-proof Dome Camera - DS-2CE56H0T-VPIT3ZF
Call for pricing
Choose Your Options
Product Description
Hikvision 5MP 2.7-13.5mm Motorized Vari-focal Lens 40m IR IP67 IK10 EXIR Vandal-proof Dome Camera - DS-2CE56H0T-VPIT3ZF
Key Feaures:
- 5 MP high performance COMS
- 2560 × 1944 resolution
- 2.7 mm to 13.5 mm motorized vari-focal lens
- EXIR 2.0, smart IR, up to 40 m IR distance
- OSD menu, 2D DNR, DWDR
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67, IK10
- Up the coax (HIKVISION-C)
- Hikvision Material Code: 300611055
- EAN Number: 6954273669171
Camera |
|
| Image Sensor | 5 MP CMOS image sensor |
| Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s |
| NTSC: 1/30 s to 1/50, 000 s | |
| Lens | 2.7 mm to 13.5 mm motorized vari-focal lens |
| Horizontal Field of View | 95.7° to 29.1° |
| Lens Mount | Φ 14 |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355° |
| Synchronization | Internal synchronization |
| Frame Rate | PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps |
| NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps | |
Menu |
|
| AGC | Support |
| D/N Mode | Auto/Color/BW (Black and White) |
| White Balance | ATW/MWB |
| BLC | Support |
| DWDR (Digital Wide Dynamic Range) | Support |
| Functions | Brightness, Sharpness, DNR, Mirror, Smart IR |
Interface |
|
| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
General |
|
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Power Supply | 12 VDC ±15%, 24 VAC ±15% |
| Power Consumption | DS-2CE56H0T-VPIT3ZF: Max. 4.4 W |
| DS-2CE56H0T-AVPIT3ZF: Max. 6.0 W | |
| Protection Level | IP67, IK10 |
| Material | Metal |
| IR Range | Up to 40 m |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimensions | Ø 145.2 mm × 124.1 mm ( Ø 7.1" × 4.9") |
| Weight | DS-2CE56H0T-VPIT3ZF: Approx. 610 g (1.34 lb.) |
| DS-2CE56H0T-AVPIT3ZF: Approx. 655 g (1.44 lb.) |
Warranty Information
2 year
