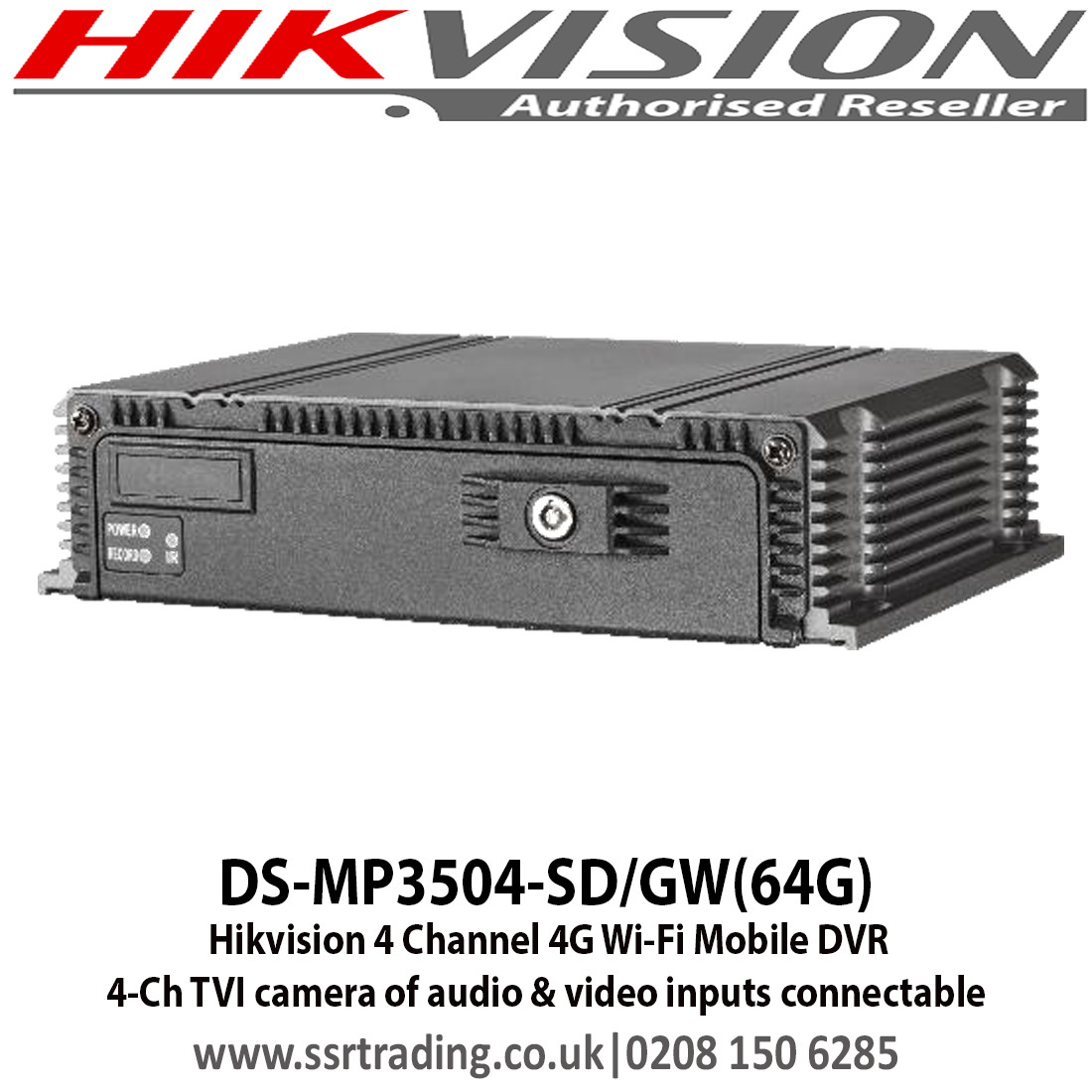

Hikvision - 4 Channel 4G Wi-Fi Mobile DVR with 4-ch TVI camera of audio & video inputs connectable, 2 SD cards accessible. Up to 128 GB capacity for each, Built-in GPS - DS-MP3504-SD/GW(64G)

Introduction

Adopting embedded Linux operating system, Hikvision DS-MP3504-SD series mobile video recorder provides powerful monitoring functionalities, including audio and video encoding & decoding, secure data storage. It can both work alone as a recorder and cooperate with other devices to build a comprehensive surveillance system. Owing to the features of high stability, small in size and low power consumption, DS-MP3504-SD is widely applied to the surveillance projects of truck, taxi, etc.

Features and Functions

•  4-ch TVI camera of audio & video inputs connectable.
•  Each channel supports up to 720p resolution with H.264/H.264+ encoding technology.
•  1-ch CVBS video output and 1-ch CVBS audio output.
•  User-friendly GUI providing easy and flexible operations.
•  2 SD cards accessible. Up to 256 GB capacity for each.
•  Power-off protection avoiding key data from loss.
•  Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
•  Specialized aviation connectors ensuring signal stability.
•  Ignition start, delay (0 to 6 hours) shutdown and 24-hour scheduled startup/shutdown.
•  Wide-range power input (+9 VDC to +32 VDC).
•  Aluminum die-cast chassis with no-fan design well adaptable to working environment.
•  Mirror image for rear view camera
