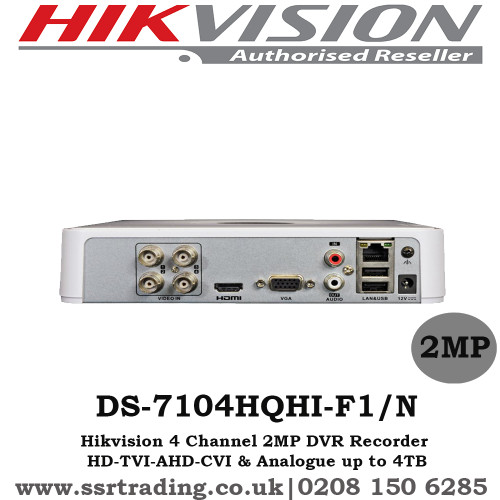

Hikvision 4 Channel 2MP DVR Recorder HD-TVI-AHD-CVI & Analogue - DS-7104HQHI-F1/N
Call for pricing
Choose Your Options
Product Description
Hikvision 4 Channel 2MP DVR Recorder HD-TVI-AHD-CVI & Analogue - DS-7104HQHI-F1/N
- H.264 ,H.264+& Dual-stream video compression
- Support HD-TVI, AHD and analog cameras with
- adaptive access
- Up to 3 MP resolution for recording of the first channel of DS-7104HQHI-F1/N, the first 2 channels of DS-7108HQHI-F1/N, and the first 4 channels of DS-7116HQHI-F1/N
- Support 1080P lite mode enabled to realize the real-time
- 1080P lite and 720P lite resolution
- Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution for DS-7104/7108HQHI-F1/N and 4K (3840 × 2160) resolution for HDMI output of DS-7116HQHI-F1/N
- Long transmission distance over coax cable
- Up to 4-ch synchronous playback at 1080p resolution
- Playback at up to 256X speed.
Video/Audio Input | ||
---|---|---|
Audio Input: | 1-ch | |
Video Compression: | H.264,H.264+ | |
Analog and HD-TVI video input: | 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
Supported camera types: | Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz Note: The 3 MP signal input is only available for the first channel of DS-7104HQHI-F1/N, the first 2 channels of DS-7108HQHI-F1/N, and the first 4 channels of DS-7116HQHI-F1/N. Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz support CVBS input |
|
Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
Audio Compression: | G.711u | |
Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | |
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
Video/Audio Output | ||
---|---|---|
HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
Recording resolution: | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF |
|
Frame Rate: | Main stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
|
Video Bit Rate: | 32 Kbps-6 Mbps | |
Stream Type: | Video/Video&Audio | |
Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
Audio Bit Rate: | 64kbps | |
Dual Stream: | Support | |
Playback Resolution: | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF | |
Synchronous Playback: | 4-ch |
Network management | ||
---|---|---|
Remote connections: | 128 | |
Network protocols: | TCP/IP, PPPoE, DHCP, Hik Cloud P2P,DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS,ONVIF |
Hard Disk Driver | ||
---|---|---|
Interface Type: | 1 SATA Interface | |
Capacity: | Up to 4 TB capacity for each disk |
External Interface | ||
---|---|---|
Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface | |
USB Interface: | 2 USB 2.0 Interfaces |
General | ||
---|---|---|
Power Supply: | 12V DC | |
Consumption: | ≤ 8W(without hard disks) | |
Working Temperature: | -10 oC ~+55 oC (14 oF ~ 131 oF) | |
Working Humidity: | 10% ~ 90% | |
Chassis: | Mini 1U chassis | |
Dimensions: | 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) |
|
Weight: | ≤0.8 kg(4.4lb) |
Warranty Information
2 Year
