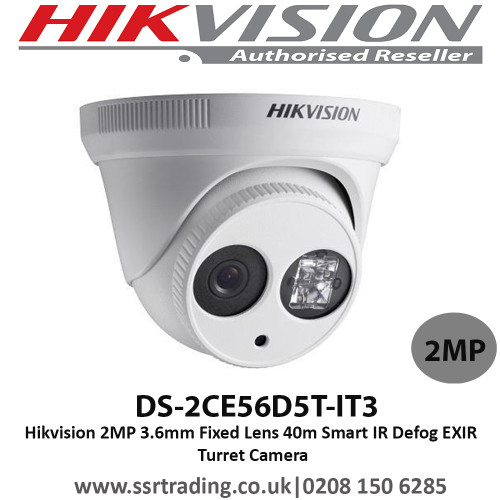

Hikvision 2MP 3.6mm Fixed Lens 40m Smart IR Defog EXIR Turret Camera - DS-2CE56D5T-IT3
Call for pricing
Choose Your Options
Product Description
Hikvision 2MP 3.6mm Fixed Lens 40m Smart IR Defog EXIR Turret Camera - DS-2CE56D5T-IT3
Key Features:
- Adopts HD-TVI technology
- Dual output, Analogue/HD-TVI
- 3.6mm fixed lens
- 3 axis movement
- True day/night
- OSD menu
- Smart IR
- Up to 40m IR distance
- IP66 weatherproof
- Up the Coax telemetry
- 120 dB wide dynamic range
- 12V DC
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/3" Progressive Scan CMOS |
| Signal System: | | | PAL/NTSC |
| Effective Pixels: | | | 1920(H)*1080(V) |
| Min. Illumination: | | | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
| Shutter Time: | | | 1/25(1/30) s to 1/50,000 s |
| Lens: | | | 3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional) Angle of View: 80.9°(3.6mm), 103.5°(2.8mm), 54.3°(6mm), 38°(8mm), 24.3°(12mm), 18.9°(16mm) |
| Lens Mount: | | | M12 |
| Adjustment Range: | | | Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° |
| Day& Night: | | | IR cut filter with auto switch |
| Video Frame Rate: | | | 1080p@25fps/1080p@30fps |
| HD Video Output: | | | 1 Analog HD output |
| Synchronization: | | | Internal Synchronization |
| CVBS Output: | | | 1Vp-p Composite Output(75Ω/RCA) |
| S/N Ratio: | | | More than 52dB |
| Menu | ||
| Camera ID: | | | On/off (15 characters, position programmable) |
| D/N Mode: | | | Color/ BW/ EXT |
| Auto White Balance: | | | ATW/ AWC-SET/ Indoor/ Outdoor/ Manual |
| Private Mask: | | | On/Off, maximum 8 zones |
| Motion Detection: | | | On/Off, maximum 4 zones |
| BLC: | | | On/Off |
| AGC: | | | Support |
| Anti-flicker: | | | On/ Off |
| Language: | | | English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic |
| Function: | | | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM |
| Scene: | | | Indoor, Outdoor, Indoor1, LOW-LIGHT |
| General | ||
| Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | | | 12 V DC±10% |
| Power Consumption: | | | Max. 5.5W |
| Weather Proof: | | | IP66 |
| IR Range: | | | Up to 40m |
| Dimension: | | | Φ114.6 × 89.1mm(Φ4.5” × 3.5”) |
| Weight: | | | Net weight: 340 g (0.75 lb) Shipping weight: 419 g (0.92 lb) |
Warranty Information
2 years
