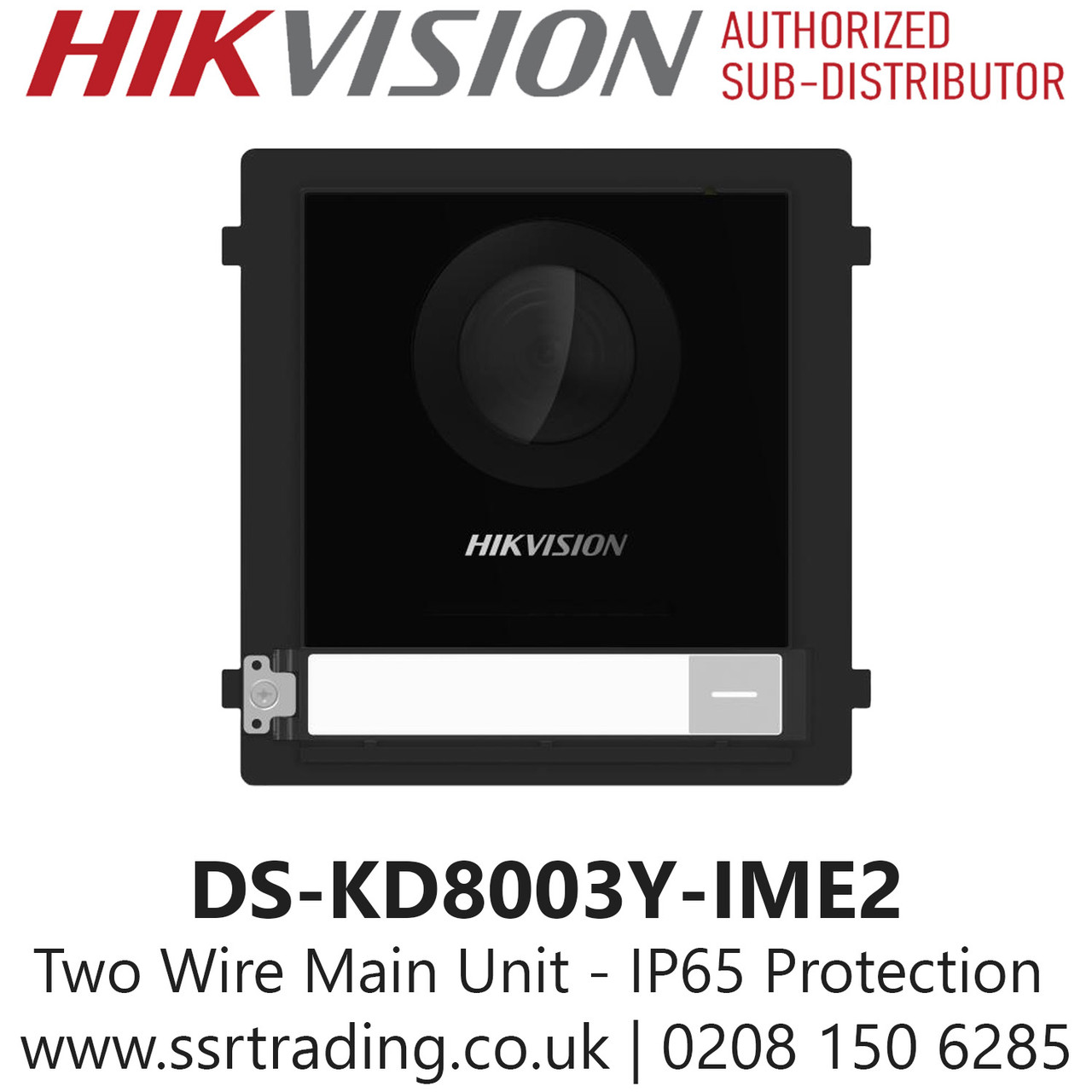

Hikvision 2-Wire Main Unit of Modular Door Station - 2MP Fisheye Camera with IR Supplement - DS-KD8003Y-IME2

The DS-KD8003Y-IME2 is a two-wire modular door station from Hikvision. Here are some of its key features:

• Camera:

  • 2 MP fisheye camera with IR supplement

  • Horizontal FOV: 146°, Vertical FOV: 82°

  • Wide dynamic range (WDR) support

  • Video compression standard: H.264

• Audio:

  • Built-in omnidirectional microphone

  • Built-in loudspeaker

  • Audio compression standards: G.711 U, G.711 A, Opus, AAC-LD, AAC-LC, G.726, G.722.1

  • Noise suppression and echo cancellation

• Interfaces:

  • 4 alarm inputs (2 exit buttons and 2 door contacts by default)

  • 2 relays for lock control (max. 30 VDC, 2 A)

  • RS-485 interface for Hikvision's sub-module communication

  • Two-wire IP interface

• General:

  • IP65 protection level

  • Working temperature: -40° C to 60° C (-22° F to 140° F)

  • Working humidity: 10% to 90%

  • Dimensions: 100 mm × 98 mm × 42 mm

  • Power consumption: ≤ 4 W

  • Powered by KAD704Y or KAD706Y series distributor
