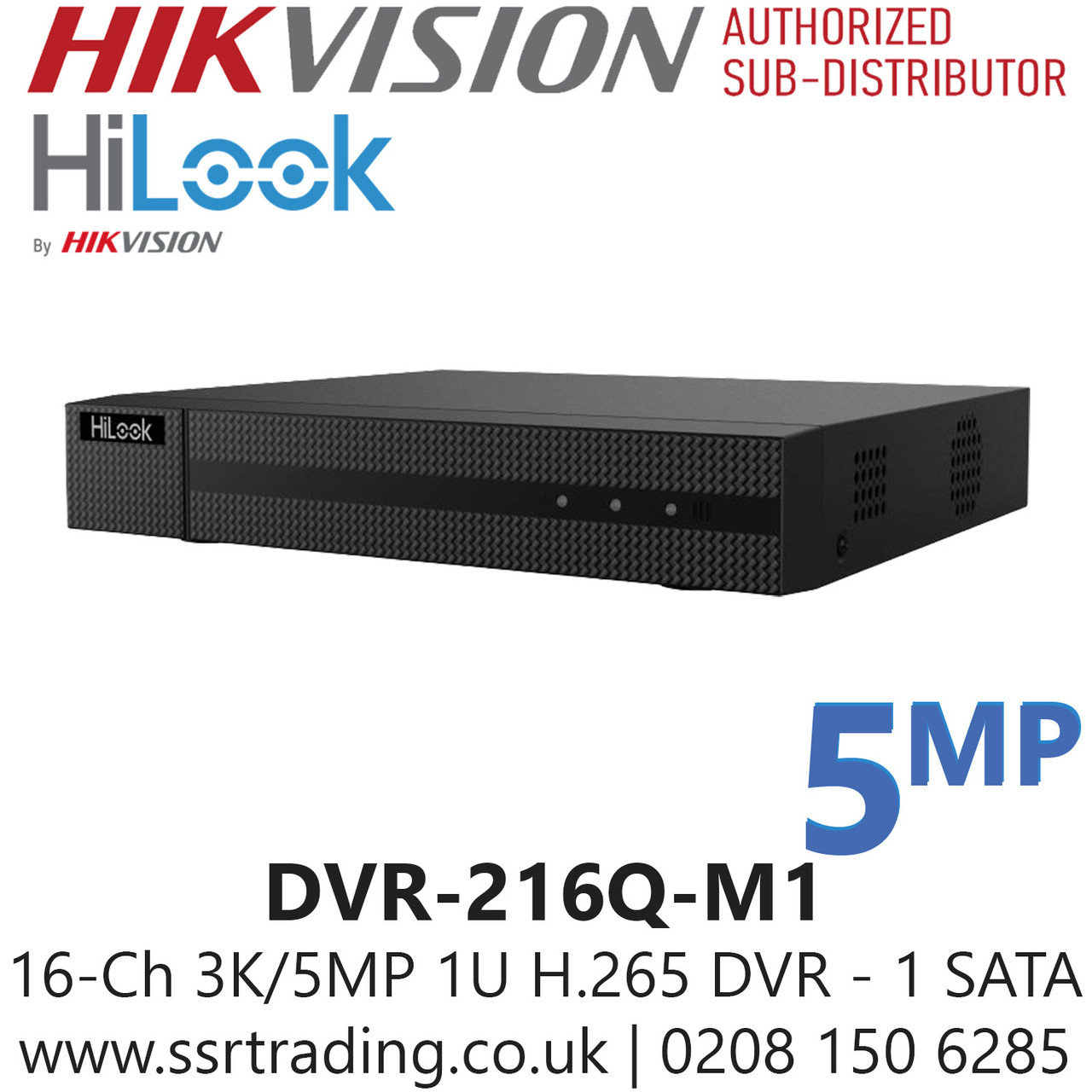

DVR-216Q-M1 HiLook 16Ch 5MP/3K 1U H.265 1 SATA DVR - 5 Signals Input Adaptively (HDTVI/AHD/CVI/CVBS/IP)

DVR-216Q-M1HiLook DVR-216Q-M1 is a high-performance 16-channel hybrid DVR designed for versatile surveillance setups. It supports HDTVI, AHD, CVI, CVBS, and IP formats, with up to 24 IP camera inputs and deep learning-based Smart Motion Detection 2.0 across all analog channels for accurate human/vehicle classification. Featuring H.265 Pro+ compression, it ensures efficient storage and bandwidth usage. The DVR delivers up to 5MP lite recording resolution and supports audio over coax, dual HDMI/VGA output, and remote access via Hik-Connect. With a 10TB HDD capacity and enhanced IP mode, it’s ideal for scalable, intelligent monitoring environments.

The HiLook DVR-216Q-M1 is a versatile 16-channel hybrid DVR designed for high-performance surveillance setups. Here's a quick breakdown of its key features:

Core Capabilities

• Video Inputs: 16 analog BNC channels + support for up to 24 IP cameras (with Enhanced IP mode)

• Supported Formats: HDTVI, AHD, CVI, CVBS, and IP — all adaptively handled

• Compression: Efficient H.265 Pro+ for reduced bandwidth and storage usage

• Encoding Resolution: Up to 5MP lite / 3K lite at 12fps; supports multiple resolutions including 1080p, 720p, and CIF

Smart Detection

• Motion Detection 2.0: Deep learning-based human/vehicle classification on all analog channels

• False Alarm Reduction: Filters out irrelevant motion like swaying trees or animals

Audio & Display

• Audio Over Coax: Simplifies cabling by transmitting audio and video through the same line

• HDMI & VGA Output: Supports up to 4K HDMI and 1080p VGA display

Networking & Storage

• Bandwidth: 96 Mbps incoming, 128 Mbps total

• Remote Access: Compatible with Hik-Connect, ONVIF, DDNS, and more

• Storage: 1 SATA interface, supports up to 10TB per disk

• USB Ports: 2 × USB 2.0 for backup and peripheral connectivity

Build & Environment

• Power: 12V DC, ≤ 20W consumption

• Size: 265 × 225 × 48 mm; Weight ≤ 1.2 kg

• Operating Temp: -10°C to +55°C

This DVR is ideal for setups that blend analog and IP cameras, especially where smart motion detection and efficient storage are priorities
