AJAX PSU for HUB2 - HUB2PSU/12V
Please call for pricing on 0208 150 6285 or email info@ssrtrading.co.uk
Product Description

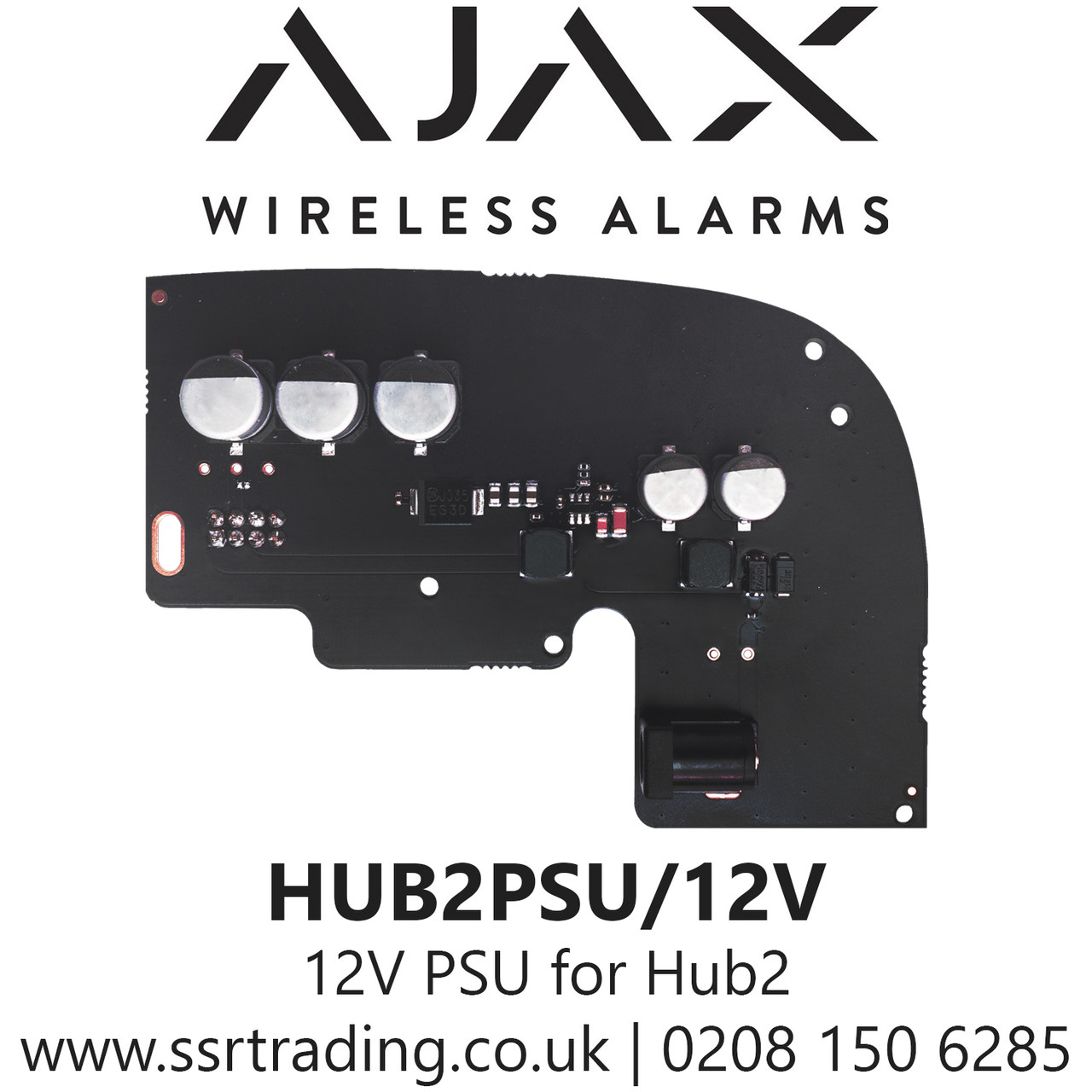

AJAX PSU for Hub2 - HUB2PSU/12V
A power supply unit, connecting the Hub 2 control panel to a low-voltage power source.
- Compatibility - Hub 2
- Input voltage - 8-20 V DC
- Output voltage - 4.8 V ± 3%
- Switch-on voltage - 8 V ± 2.5%
- Switch-off voltage - 6.9-7.5 V (depending on load)
- Input current - <1 А
- Output current - 1,5 А
- Connection - Socket: 6,5 х 2 mm
Plug: 5,5 х 2,1 mm (power jack) - Dimensions - 98 х 70 х 17 mm
- Weight - 28 g
- Complete set- 1. 12V PSU for Hub 2
2. Terminal adapter
3. Quick guide
At warehouse
Use the security system with visual alarm verification in premises lacking electricity or having an unstable power supply. A 12 V power supply unit allows connecting hub to low-voltage networks or using a portable battery.
In trailer
Ajax protects your home, even if it goes on wheels. Connect the hub to a car or portable battery, and let the security system travel with you.
On yacht
Insert a SIM card and connect the hub to the on-board network or battery so that Ajax always guards your boat at the pier.
Compatibility
The power supply unit is compatible with Hub 2 central panel. It features a standard socket for connecting the power jack plug and has a bundled terminal adapter.
Installation
12V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit.
