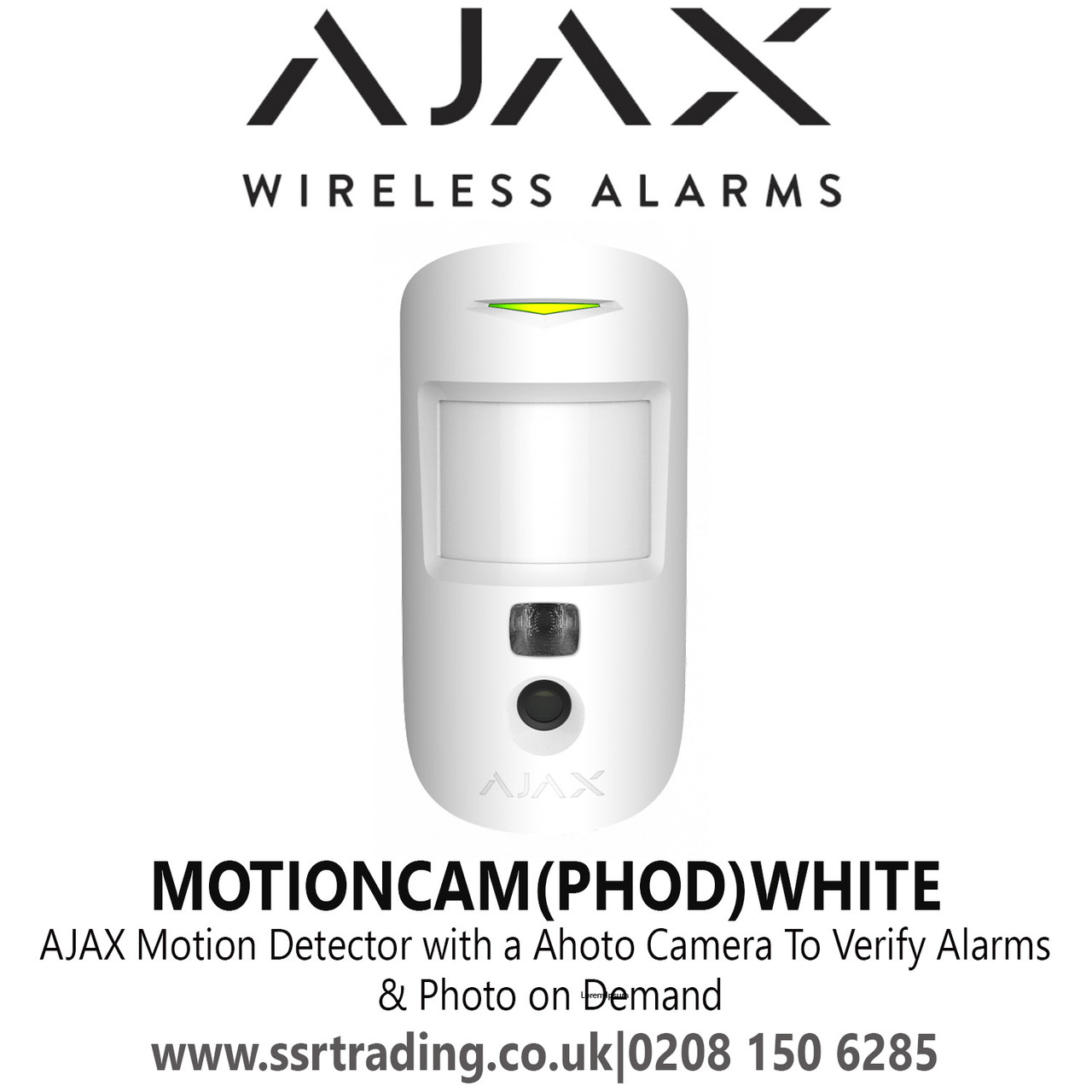

AJAX MOTIONCAM(PHOD)WHITE Motion Detector With A Photo Camera to Verify Alarms & Photo on Demand

Wireless indoor IR motion detector supporting photo verification of alarms, Photo on Demand and Photo by Scenario features

• Up to 12 m detection distance

• Pet immunity

• False alarms prevention algorithm

• Up to 4 years of operation on pre-installed battery

• Remote control and setup via the app

• 88.5°/80° viewing angles

• Temperature compensation

• A built-in camera for photo verification

• Effortless installation and replacement

• Connecting via QR code

False alarms prevention

MotionCam (PhOD) Jeweller equipped with a built-in camera to show the real situation at the facility. There are three types of photo verification: by alarm, by scenario, and on demand. The user can request and see
photos with one click in the Ajax app.

Optics

The detector lens increases sensitivity to human motion, cutting off false alarms to other sources of IR radiation. It is designed so that potential IR radiation from pets and other interferences affect only the small lens sections. Large sections, on the contrary, are aimed at the most likely places of burglar motion.

Software

For additional protection against false alarms, the detector uses the SmartDetect algorithm. The armed detector constantly analyses the thermal diagram from the PIR sensor: the intensity of IR radiation, the size of the thermal spots, the speed of movement and other parameters.

Installation

When properly installed and configured, the detector does not react to common sources of false alarms and pets under 50 cm tall and 20 kg weight. For seamless installation, it has pre-installed batteries and the SmartBracket mounting panel. So, installers don’t need to disassemble the detector and won’t damage the electronics during installation.

Photo verification

MotionCam (PhOD) Jeweller equipped with a built-in camera to show the real situation at the facility. Thereare three types of photo verification: by alarm, by scenario, and on demand. The user can request and see photos with one click in the Ajax app.

Photo by Alarm
A built-in camera is activated if the detector is armed and motion is detected. Only users with access to the hub event feed and security company employees can view the photos.

Photo by Scenario
A detector camera takes pictures automatically when Ajax fire detectors are triggered.

Photo on Demand
The user takes pictures at any time or when a detector is armed (depending on settings). Photos on demand are not sent to the security company monitoring station.

Privacy on demand

Users can manage access rights to detectors with photo verification. The access level can be defined for each system user. Privacy settings determine:

• Which user can take and view photos on demand

• Which detectors with photo verification can be used to take photos on demand

• When the user can take photos on demand: at any moment or only when a

  detector is armed.

By default, all hub admins have the right to manage privacy settings. PRO users cannot manage privacy settings.

Two-way encrypted communication

Jeweller and Wings are two way wireless data transfer protocols that provide fast and reliable communication between hubs and devices. Radio protocols work independently of each other and focus on their own function. The Jeweller protocol delivers instant data rich alarms: security companies and users know which device was triggered, when and where it happened. The Wings protocol delivers photos taken by a detector built in camera.

Both protocols feature encryption and authentication to prevent forgery, and polling to display device status in real time. Supporting up to 1,700 m of wireless connectivity, Jeweller and Wings are ready to protect facilities and deliver the best user experience for both end users and installers.
