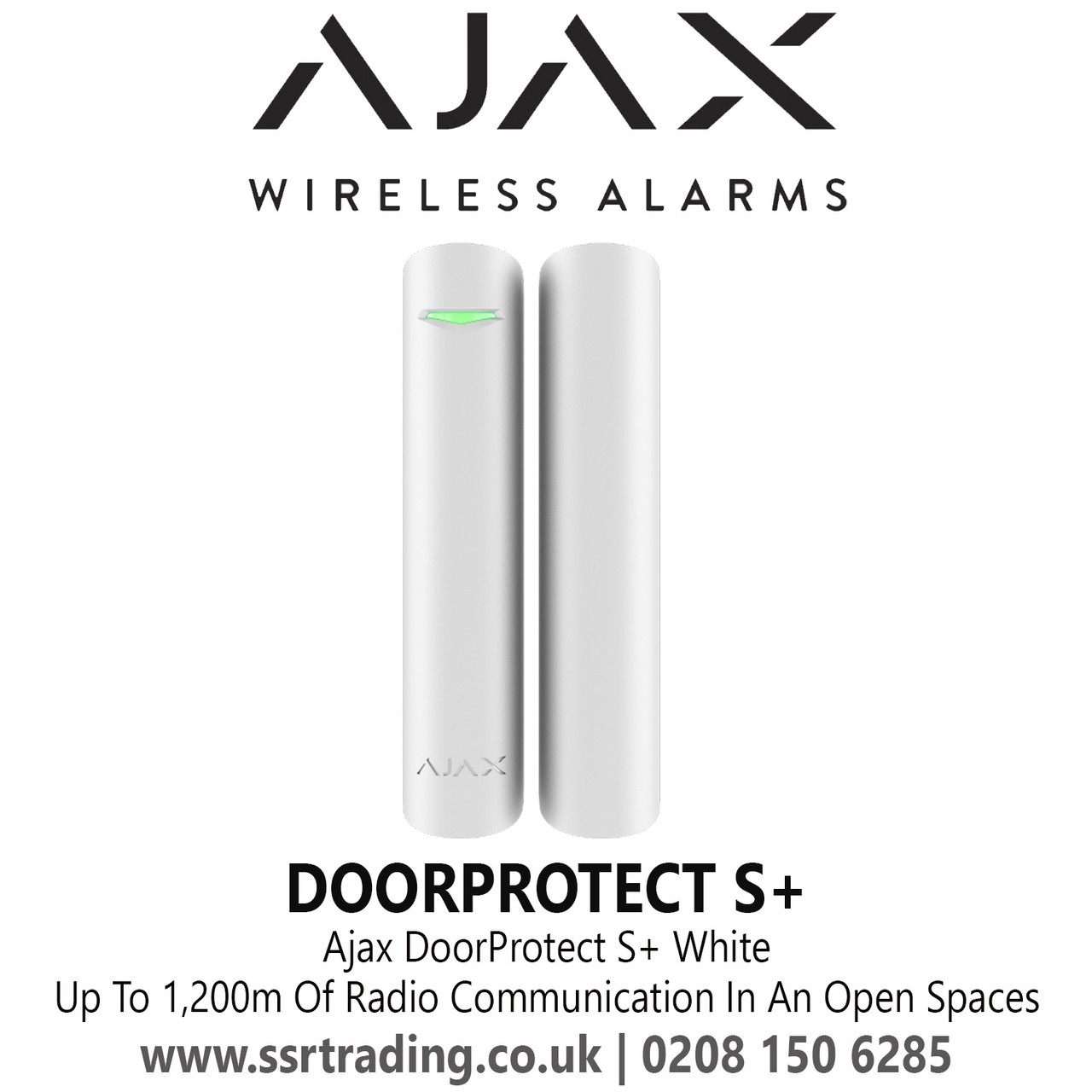

Ajax DoorProtect S+ White, Up To 1,200m Of Radio Communication In An Open Space

DoorProtect is a wireless opening detector that notifies of first signs of room intrusion by means of an open door or window. It can be mounted on all types of doors including a metal base.
The device detects the door or window being opened by means of high end British manufactured reed switch on which the magnetic field acts. It can operate as a transmitter by sending a signal from a wired sensor to the hub.

Features:

• 2 reed switches to detect the opening

• 4 Accelerometer to detect impacts, vibrations, and changes in the tilt angle

Additional features

• Connector for a third party detector with NC (normally closed) contact

• Chime function: Ajax sirens make a special sound when the door is opening

• Up to 1,200 m of radio communication in an open space

• Data is encrypted throughout the transmission process

• Regular polling to display current device statuses

• Equipped with 2 reed switches and 2 magnets (small and bigT

• Plastic reed switches: more durable than the glass ones

• Shock and tilt sensors are configured in the app

Compatibility

Hubs

• Hub Plus

• Hub 2 (2G)

• Hub 2 (4G)

• Hub 2 Plus

• Hub Hybrid (2G)

• Hub Hybrid (4G)

Range extenders

• ReX

• ReX 2

Communication with control panel

Jeweller communication
technology

Frequency bands: 868,0 — 868,6 MHz

Communication range: up to 1,200m  *In an open space*

Detection

Sensitive elements:

• 2 × reed switch

• 1 × accelerometer

Sensors’ resource: 2,000,000 openings

Shock sensor sensitivity: 3 levels  *Adjusted by PRO or user with

admin rights in the Ajax app*

Tilt sensor activation threshold: from 5° to 25°  *Adjusted by PRO or user with

admin rights in the Ajax app*

Third-party detector connection: detector with the normally closed

(NC) contact type

Power supply

Battery: 1 × CR123A

Battery life: up to 5 years

Manufacturer: Panasonic

Installation

Operating temperature range: from 10°С to +40°С

Operating humidity: up to 75%

Protection class: IP50

Enclosure

Colour: BLACK or WHITE

Dimensions: 103 × 22 × 21 mm

Weight: 37 g
