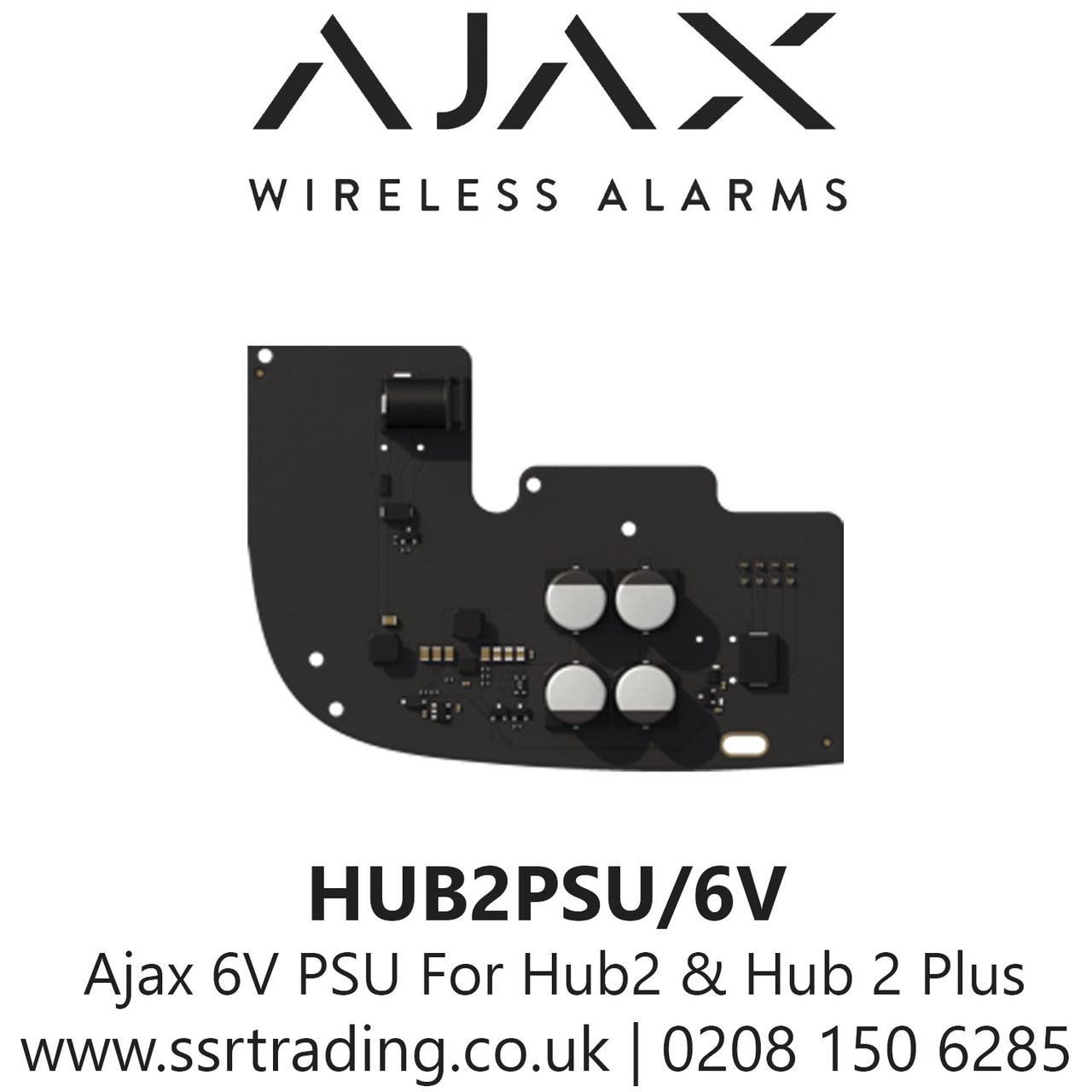

Ajax 6V PSU For Hub2 & Hub 2 Plus - HUB2PSU/6V

• Compatibility - H Hub2 and Hub 2 Plus

• Input voltage - 4.2-16 V

• Output voltage - 4.8 V ± 5%

• Switch-on voltage - 4.2 V ± 2.5%

• Switch-off voltage - 3-3.4 V (depending on the load)

• Input current - 2.2 A at 4.2 V; 0.5 A at 16 V

• Output current - 1.5 A

• Connection - Socket: 6,5 Ñ… 2 mm

                        Plug: 5.5 x 2.1 mm

• Dimensions - 98 x 70 x 17 mm

• Weight - 26 g

• Complete set - 1. 6V PSU for Hub 2/Hub 2 Plus

                          2. Terminal adapter

                          3. Quick guide

Protecting facilities lacking electricity

With an alternative 6 V power supply unit, your hub can operate from an external battery for years — without being connected to
the facility's power grid — and is ready to protect buildings in critical condition, construction sites, or abandoned properties from burglars, vandals, and unauthorized occupation.

Compatibility

The power supply unit is only compatible with Hub 2 and Hub 2 Plus control panels. It has a standard power jack plug to connect the power cable and is supplied with a terminal adapter.

Installation

6V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit.
