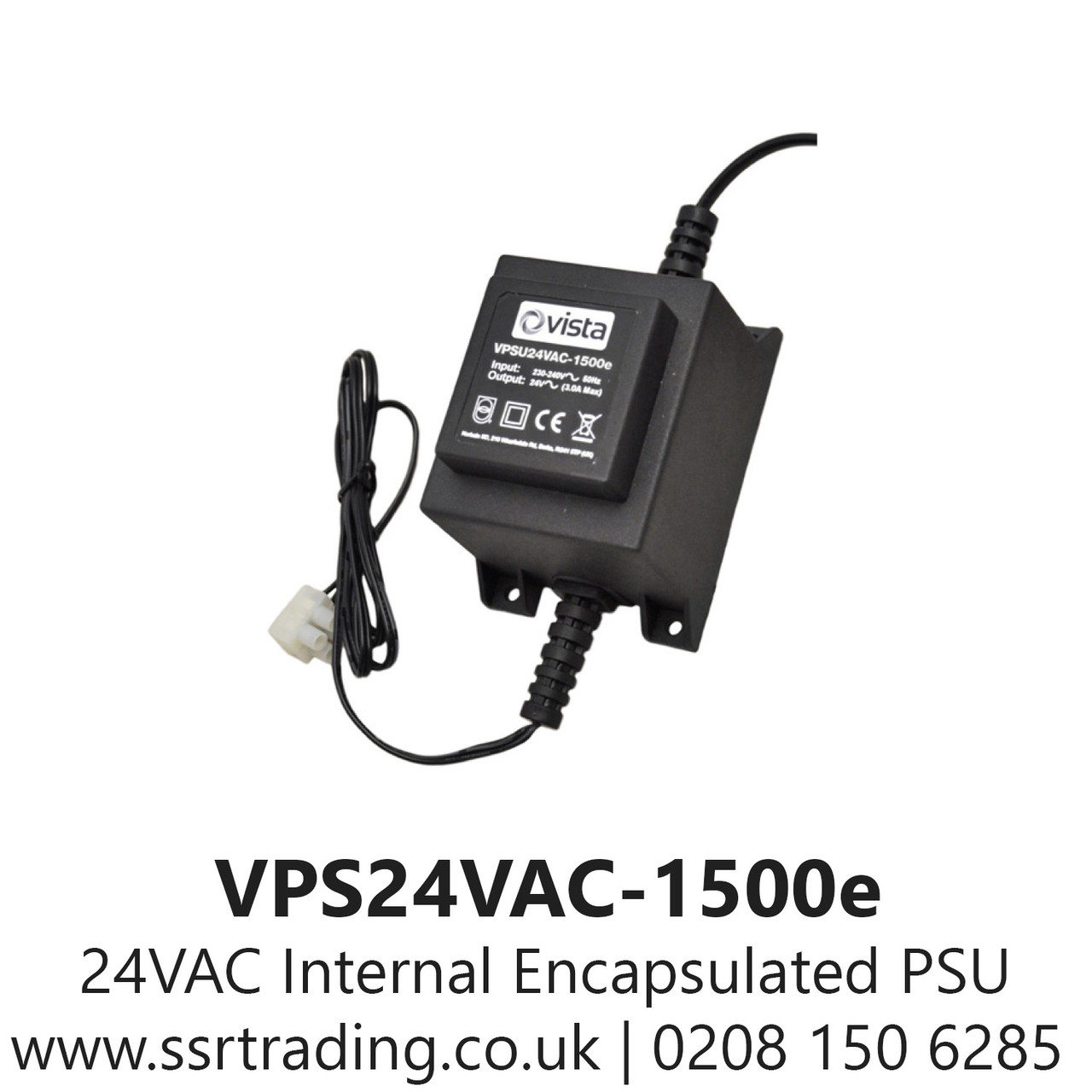

24VAC, 1.5A Encapsulated Power Supply - VPSU24VAC-1500e

INPUT

• Voltage - 230V ac nominal (+10% / -15%)
• Frequency - 50Hz
• AC connections - Stripped ends – 0.9m lead

OUTPUT

• Voltage - 24V ac (+/- 5%) @ 230V ac input
• Max load current - 1500mA
• Voltage range - 24V ac to 27V ac (on full load to off load @ 230V ac)
• Out put connections - 2-way connector block (screw terminals) – 1m lead

PHYSICAL

• Environment - 100C to 400C @ up to 95% RH, IP68 external enclosure
• Type - Class II
• Dimensions - -100x75x67mm (LxWxH)
• Mounting holes - 2
• Weight - Approx 1.04kg
• Compliance - Low Voltage: 2014/35EU, EMC: 2104/30/EU, RoHS2: 2011/65/EU, WEEE: 2012/19/EU
