Hikvision Exit & Emergency No Touch Button - DS-K7P03

Please call for pricing on 0208 150 6285 or email [email protected]
SKU:
(DS-K7P03)
Quantity:

Product Description

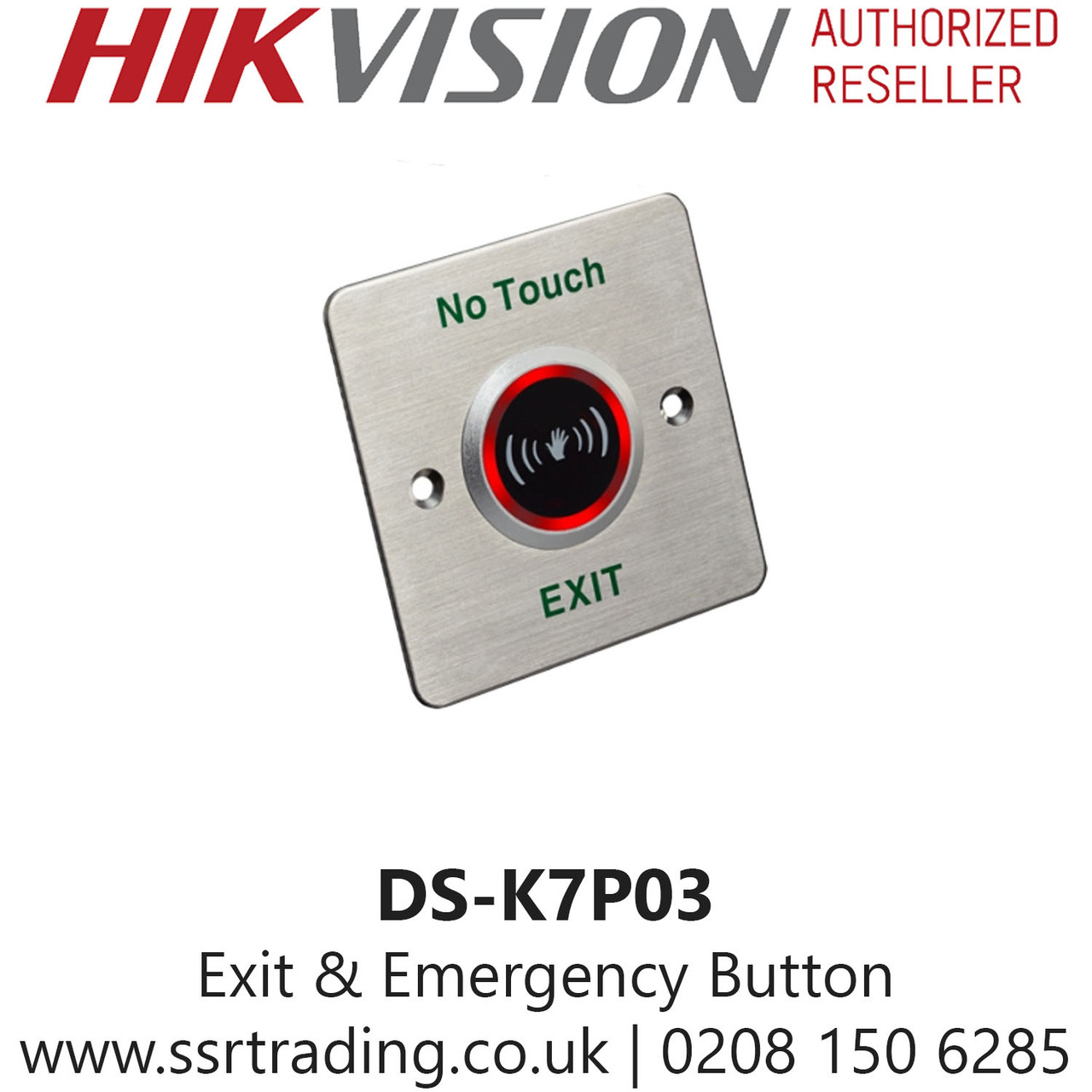

Hikvision Exit & Emergency No Touch Button - DS-K7P03

Key Features:

  •  Dimension (L × W × H): 86 mm × 86 mm × 25.7 mm (3.39" × 3.39" × 1.01").
  •  Input Voltage: 12 VDC.
  •  Working Current: 40 mA (standby), 70 mA (working).
  •  Current Rating: 1 [email protected] VDC.
  •  Output Contact: NO/NC/COM contact.
  •  Panel: Stainless steel.
  •  Aging Test: Already passed 1 million time aging test.
  •  Suitable Doors: All kinds of narrow doorframes.
  •  Working Temperature: -20 °C to 50 °C (-4 °F to 122 °F).
  •  Time Delay: 1 to 25 s (adjustable)
  •  LED Indicator Status: Green/red LED indicates working/standby.
  •  Product Weight: 0.2 kg (0.44 lb).

Hikvision Data Sheet:

Please click the link below for full specification

DS-K7P03 pdf-icon-small.png
